ALUMATE FR Panel
Feature |
|

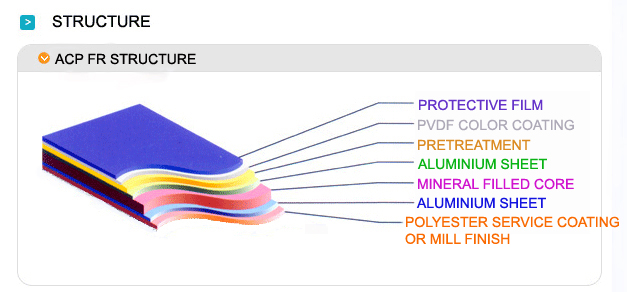

ALUMATE FR-PANEL is an aluminium composite panel consisting of two aluminium sheets and mineral(Non-Combustible) infilled core.
ALUMATE PRODUCT ADVANTAGES |
|
ALUMATE Aluminium FR Panel offer many advantages:
 Environmentally Friendly
No toxic gas occurrence and helps create an environmentally friendly product.
Fire Retardant
The new non-combustible mineral core material is ideally suited for high-rise construction and has passed the various fire safety codes that are required throughout the world.
Superior Flatness
Produced under the feed block roll injection system, not a pressing system, which allows the superiority in flatness to be maintained.
Workability
Cutting, bending, grooving, curving are very easily accomplished with aluminum working machines. |
Technical Data
| ALUMATE PANEL SPECIFICATION |
|
Dimension |
Standard Width |
1220 mm, 1250 mm, 1500mm |
| Available Widths |
800 mm ~ 1500 mm |
| Standard Length |
2440 mm, 4000 mm, 5000mm |
| Available Lengths |
1600 mm ~ 5000 mm |
|
Thickness |
3 mm, 4 mm, 5 mm, 6 mm |
|
Aluminium Skin Thickness |
0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm |
|
Paint Coating |
Front |
P.V.D.F. coating |
|
Rear |
Polyester coating or Mill finish |
|
Color |
Our standard color
(reference color chart) |
| You may order your special color | * ALUMATE panel is usually supplied with protective film on panel surface.
* ALUMATE Protective film copyright was registered to Korean Intellectual Property rights Office. |

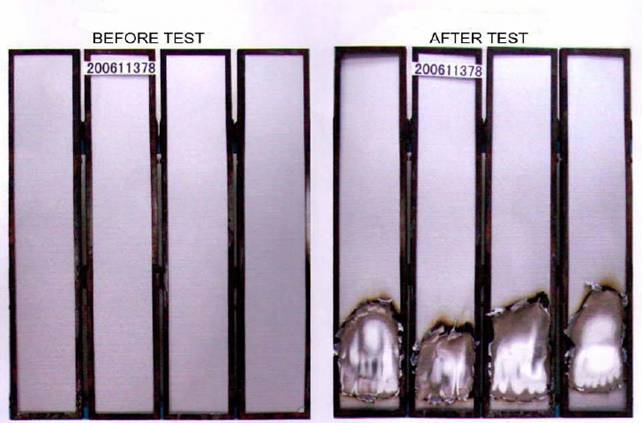

FIRE SAFETY
IGNITABILITY: HARDLY INFLAMMABLE CLASS B1 |
|
Item of the Test |
Method of Test |
Technology
standard |
Test Value |
Result |
|
Minimum length of the remaining after burning (mm): |
GB/T 8625-2005 |
＞0 |
610 |
Ok |
|
Average length of the remaining after burning (mm): |
GB/T 8625-2005 |
≥150 |
632 |
Ok |
|
Average smoke temperature(℃): |
GB/T 8625-2005 |
≤200 |
97 |
Ok |
|
Peak of flame(mm): |
GB/T 8626-88 |
＜150 |
15 |
Ok |
|
Smoke density (SDR): |
GB/T 8627-1999 |
≤75 |
20 |
Good | Total thickness of panel: 4mm
Aluminum thickness of panel: 0.5mm
Core material: Fire resistant polyethylene |
 |
 |
 | |
