PVDF ALUMINUM HONEYCOMB PANEL
Feature |
|
ALUMATE ® AHP is a lightweight, rigid and durable aluminum composite material, it’s high structural stability gives you incredible smooth surface and pressure resistant (wind load resistant), widely used as interior and exterior wall cladding, aviation material, vehicle body coverage, ocean projects and so on.
COMPOSITION & MATERIALS

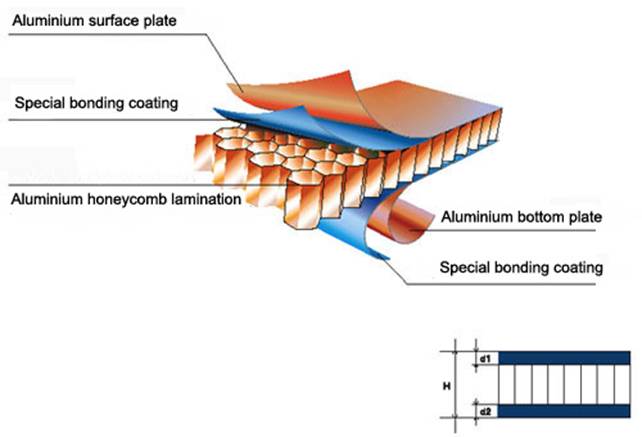

ALUMATE® AHP consists of a core of aluminum honeycomb bonded to face sheets, DuPont (America) or Henkel (Germany) adhesives as bonding layer, fabricated of aluminum alloy, coated by more than 70% PVDF color coating. |
 |
TYPES
Several types of AHP panels are available including:
- ALUMATE ® standard flat panels
- ALUMATE ® curved panels
- ALUMATE ® Stone finish honeycomb panels
- ALUMATE ® Stone honeycomb panels
ALUMATE® AHP Curved panels and double face curved panels made by the world’s advanced technology, have been widely used in the wall cladding these years. |
FINISHES
 PPG industrial coatings
 BECKER industrial coatings
 VALSPAR industrial coatings
" FLUOROFINE NANO-TECH ANTI-DIRT self clean coatings
Standard ALUMATE® AHP with KYNAR 500® or HYLAR5000® Polyvinylidene Fluoride (PVDF) finishes is available in wide range of colors and a broad spectrum of gloss levels, from 15 - 35%. For high spectrum of gloss levels of more than 60%, please contact our company for details. |
Technical Data
| ALUMATE PANEL SPECIFICATION |
|
Dimension |
Standard Width |
1220 mm, 1250 mm, 1500mm |
| Available Widths |
800 mm ~ 1500 mm |
| Standard Length |
2440 mm, 4000 mm, 5000mm |
| Available Lengths |
800 mm ~ 5000 mm |
|
Thickness |
8 mm ~ 30 mm | * ALUMATE panel is usually supplied with protective film on panel surface.
* ALUMATE Protective film copyright was registered to Korean Intellectual Property rights Office. |
|
SHAPES & FABRICATION
ALUMATE® AHP panels can be cut, routed and formed with conventional woodworking tools. Angle bends are formed by routing the back of the panel prior to shaping. The common pan shape is formed by routing the back edges, trimming the corners and bending and reinforcing the edges. Pre-shipment fabrication is available in the factory, for large quantity to be fabricated. please contact our sales department. Details of on site fabrication.
MECHANICAL AND PHYSICAL PROPERTIES
| AHP PHYSICAL PROPERTIES |
| Properties |
Test value |
| Aluminum thickness, in (mm) |
1.0 |
| Weight, in (lb./sq. ft. | kg/sq. m.) |
1.37 | 6.67 |
| Coefficient of expansion, (mm/mm/°C) |
2.36×10-5℃-1 |
| Rigidity of 10mm AHP (kNm2/m) |
2.16 |
| Peeling strength (N/mm) |
10.8 |
| Shearing strength (Mpa) |
3.64 |
| Shearing elastic modulus (Mpa) |
10.8 |
| Thermal resistance: |
-40℃ to 70℃ |
| Average airborne sound (dB) |
29 |
| Film thickness ( E.C.C.A T1,27μ) (μ) |
28 |
| Coating flexibility ( E.C.C.A T7,T=1) (ASTM D 4145-83, T=1) (T) |
1 | |
  |
ALUMATE SHP (Stone Honeycomb panel)

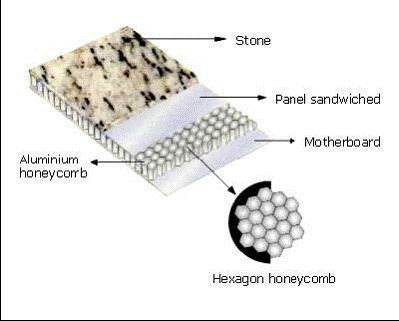

ALUMATE® Stone honeycomb panels ALUMATE® SHP consisting of natural marble or granite stone face (approximately 3-5mm) bonded to AHP, SHP preserved the natural appearance of the stone face, has overcome the fragility and heavy weight of the real stone. ]
|
 |
- Maximum size: 800mm × 2000mm
- Temperature range: -35℃ to 80 ℃
- Bending strength: ≥ 17.8Mpa
- Wind load resistant: >10KN/㎡
- Sound Insulation: 32dB
- 15mm SCP Panel weight: 3.54lb./sq. ft., 17.3kgs/sqm
Shape & Fabrication can only be done by special equipment in factory.
Please contact our sales department for details. | |
