PVDF Aluminum Composite Panel
Feature |
ALUMATE (Aluminium Composite Material( ACM)), is high-performance product from ALUMATE CORPORATION.
ALUMATE ACP is a lightweight, rigid, bendable and durable aluminium faced composite panel with strong temperature ranging from -50℃ to 70℃, widely used as interior and exterior wall cladding. |
TYPES
Several types of ACP panels are available including: |
- ALUMATE ® standard panels
- ALUMATE ® fire-resistant panels
- ALUMATE ® Stone finish panels
- ALUMATE ® Anti-scratch PE panels
 |

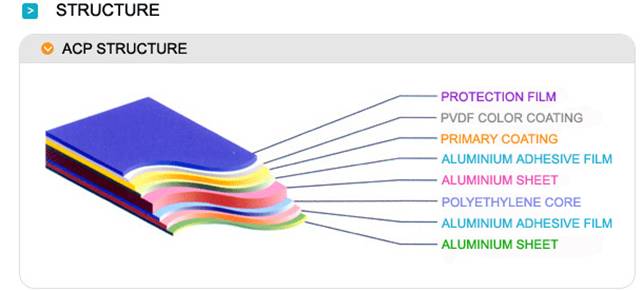

COMPOSITION & MATERIALS
ALUMATE ACP panels consist of a core of thermoplastic material thermally bonded to aluminium sheets, DuPont Bynel®  as strong bonding layer coextruded on the surface of plastic core, fabricated of aluminium alloy, 0.020" (0.5 mm) thick or an equivalent. |
 |
|
Front side : Aluminium roll-coated with more than 70% of PVDF.
All coatings meet or exceed AAMA605.2 requirements.
Core : Anti-toxic low density polyethylene(0.92g/㎤)
Rear side : Aluminium coated with chromate or polyester |
ALUMATE PRODUCT ADVANTAGES
ALUMATE Aluminium Composite Panels offer many advantages: |
 |
Lightweight, extreme rigidity and flatness resulting in an economical option for high quality building facades and interior laddings |
|
Weather resistance combined with high acoustics, Thermal and Fire rated values. |
|
Choice of Solid, Metallic, Granite, Brushed and Anodized colors makes ALUMATE an Architect's dream choice for interior and exterior facade's treatment. |
|
Easy machinability gives the flexibility of shapes making it a versatile panel to achieve complex designer solutions. |
|
Paint coatings cover the full range of finishes of 70% PVDF (Fluoropolymer) coil coatings in both metallic, nonmetallic and polyester, acrylic paints. | |
FINISHES
 PPG industrial coatings
 BECKER industrial coatings
 VALSPAR industrial coatings
" FLUOROFINE NANO-TECH ANTI-DIRT self clean coatings
|
|
Standard ALUMATE ACP with KYNAR 500® or HYLAR5000® Fluoropolymer (PVDF) finishes is available in wide range of colors and a broad spectrum of gloss levels, Meets or exceeds the performance requirements of AAMA605.2 Stone Series is a simulated stone fluoropolymer finish combined with fluoropolymer colors in white marble and red, pink, white and black granite finishes.
Highly durable PVDF coatings have provided long-term beautification of metal building panels and components for near 40 years in the field. |
 |

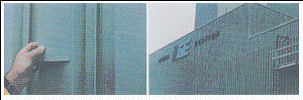

Ginna Nuclear Power Station, built in 1967, used PVDF coating
and keep integrity of the coating for near 40 years |
SHAPES & FABRICATION
ALUMATE panels can be cut, routed and formed with conventional woodworking tools. Angle bends are formed by routing the back of the panel prior to shaping. The common pan shape is formed by routing the back edges, trimming the corners and bending and reinforcing the edges.
ALUMATE can be rolled on a pyramid or 4-stand roll bender to a curved shape for curved corners or column covers. Bumping on a press brake also can be used to produce a curved surface. Details please refer to our Material Processing Manual. |
ALUMATE APPLICATIONS
ALUMATE array of colors and finishes combined with the inherent capability of forming into different shapes and contours with durability and weather resistance makes ALUMATE an architect's dream ! Major corporation and multi national companies have a definitive desire to make their structures an expression of personal designer statement. ALUMATE becomes a natural choice to achieve this objective. The possible applications are limited to the architect's imagination.
Some of the commonly used ALUMATE applications are: |
|
|
|
|
|
|
|
Circular Columns |
|
Building Wall Cladding |
|
Wall Paneling Concepts |
|
|
|
|
|
|
|
Soffits and Beams |
|
Metal Ceiling and Partitions |
|
Exhibition and Display Stands |
|
|
|
|
|
|
|
Shop fronts and Signages |
|
Window Surrounds |
|
Door Panels and Frames | |
