| ALUMATE PANEL SPECIFICATION |
|
Dimension |
Standard Width |
1220 mm, 1250 mm, 1500mm |
| Available Widths |
800 mm ~ 1500 mm |
| Standard Length |
2440 mm, 4000 mm, 5000mm |
| Available Lengths |
1600 mm ~ 5000 mm |
|
Thickness |
3 mm, 4 mm, 5 mm, 6 mm |
|
Aluminium Skin Thickness |
0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.50mm |
|
Paint Coating |
Front |
P.V.D.F. coating |
|
Rear |
Polyester coating or Mill finish |
|
Color |
Our standard color
(reference color chart) |
| You may order your special color | |
* ALUMATE panel is usually supplied with protective film on panel surface.
* ALUMATE Protective film copyright was registered to Korean Intellectual Property rights Office. |

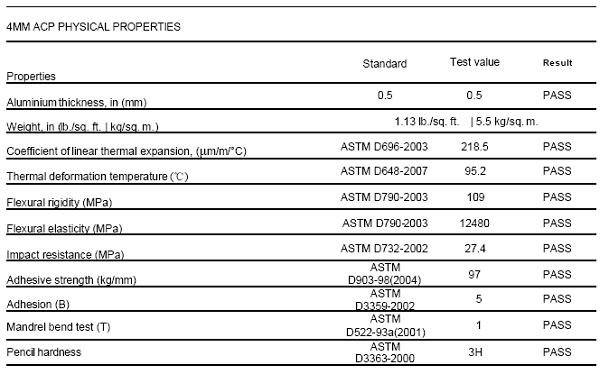

4MM ACP PHYSICAL PROPERTIES |
 |
Maintenance
PVDF is a long-term, maintenance-free finish.
Under normal exposure and use, it is self-cleaning through rain washing. Water flush or power washing with a mild deter-gent is recommended to remove heavy soil.

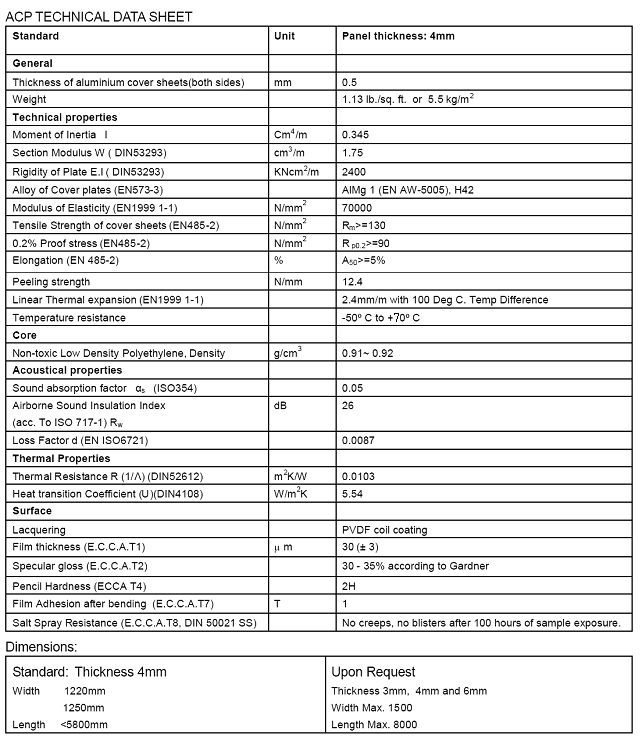

MECHANICAL AND PHYSICAL PROPERTIES |
 |
APPLICABLE STANDARDS
- ASTM: American Society for Testing and Materials.
- DIN: German Industrial Standard.
- NFTC: National Center For Quality Supervision and Testing of Fire Building Materials
- CBMTC: National Research Centre of Testing Techniques for Building Materials Details please refer to our Mechanical and Physical property
|
 | |
